SIRO  |  SKU: SL09826Z-1

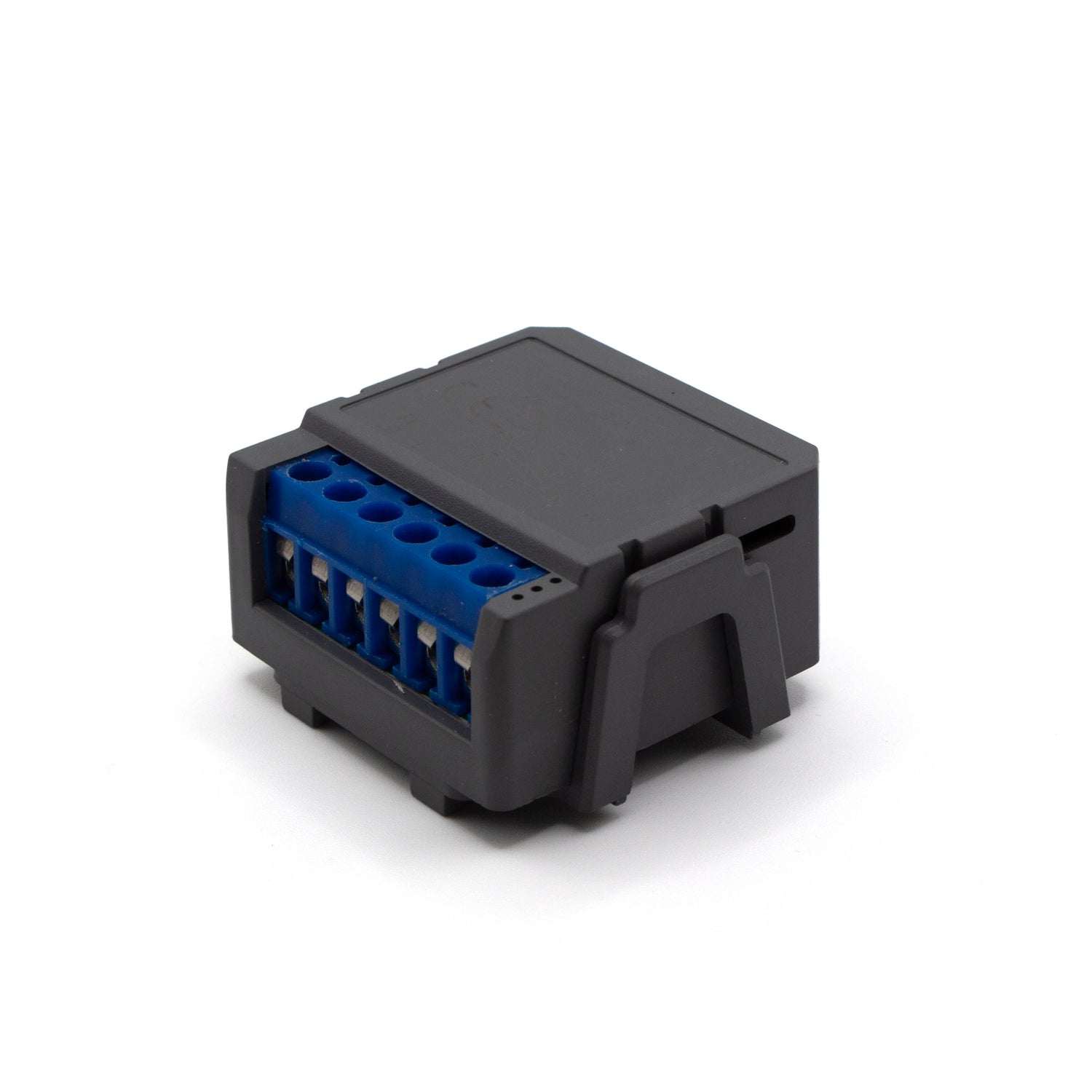

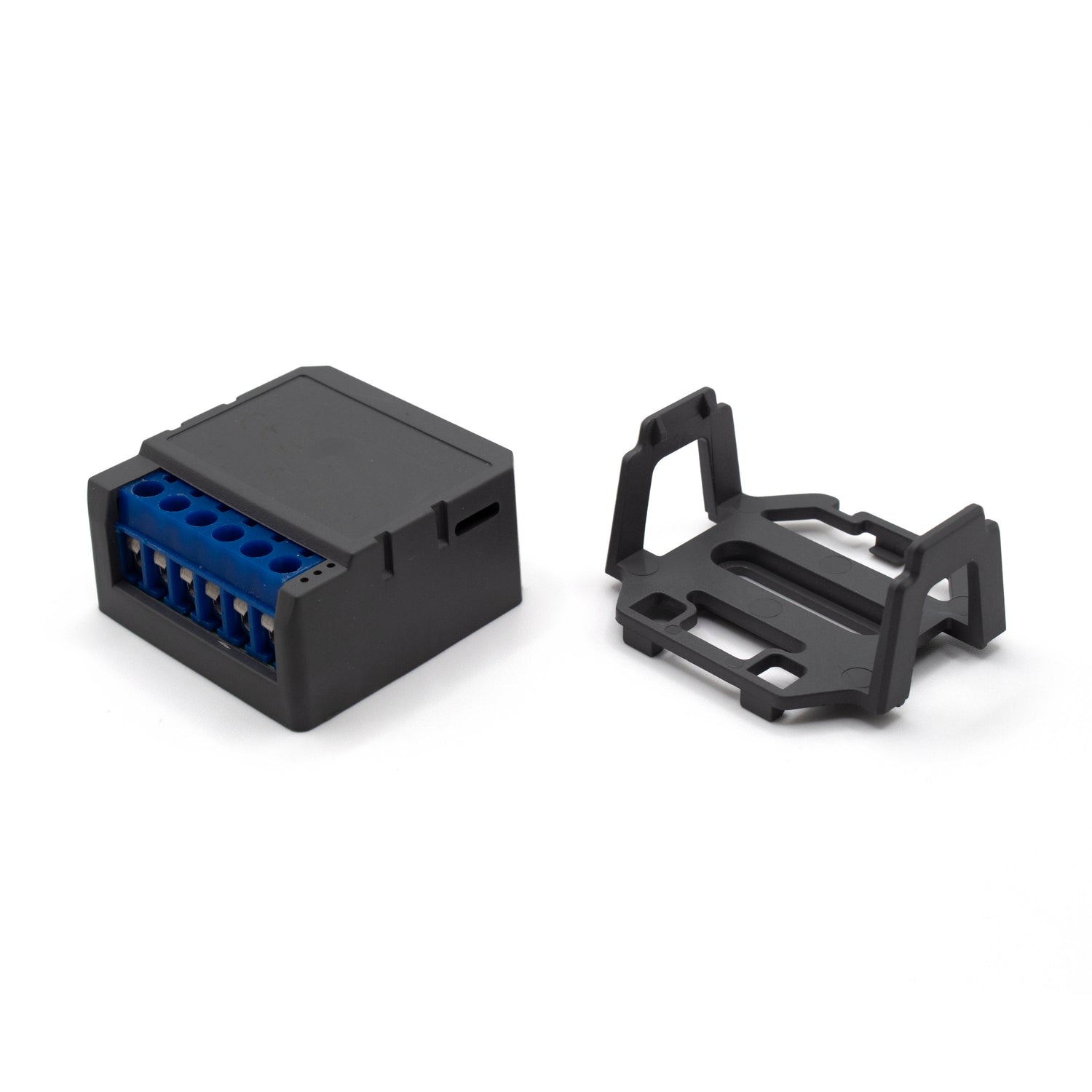

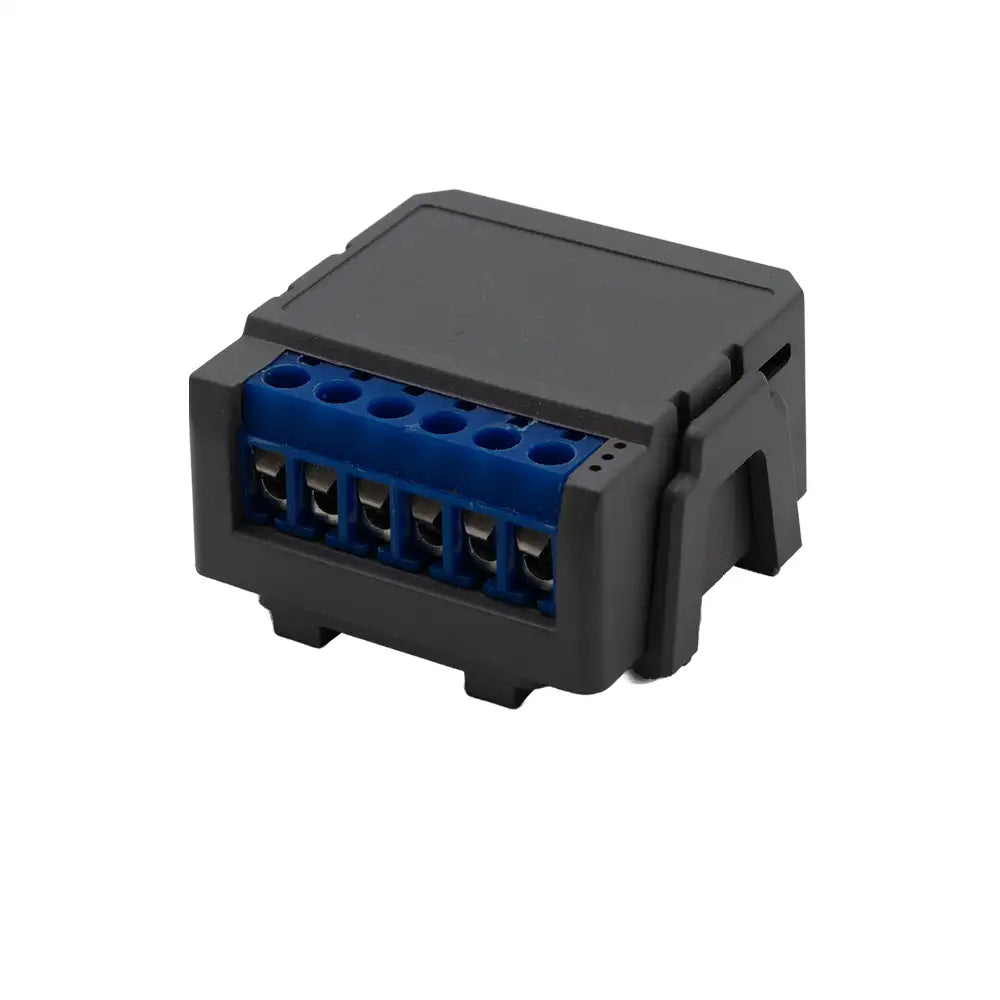

Smart Zigbee Relay Roller Shutter Switch

Product information

€12,90 €17,50
Tax included Shipping calculated at checkout.
Save now with a bundle Matching your selection 1 recommendation

Description

  • Converts your conventional roller shutter switch into a smart roller shutter switch
  • Smart control via the Smart Life app
  • Custom timer allows automatic opening/closing of your roller shutters
  • Percentage opening and closing possible (0-100%)
  • Installation in any standard flush-mount box, behind your existing switch
  • A Zigbee gateway is required for app connectivity

Smart Life kompatibel
Mit der Smart Life App steuern und vernetzen Sie all unsere Smart-Geräte zentral, übersichtlich und individuell per intelligenter Szenensteuerung.
Alle Funktionen entdecken →

Product description

Smart Zigbee Relay Roller Shutter Switch – easily retrofit existing roller shutters with smart functionality

With the SIRO Smart Zigbee Relay Roller Shutter Switch SL09826Z-1, you can make your existing roller shutter switch smart in no time. The compact Zigbee in-wall relay is installed invisibly behind the existing wall switch or roller shutter switch in the flush-mount box. The switch and cover frame can continue to be used – ideal for the uncomplicated retrofitting of existing roller shutters and blinds.

After connecting it to a compatible Zigbee gateway, you can conveniently control your roller shutters via the Smart Life app, automate them, and integrate them into your existing smart home system.

Percentage-based roller shutter control via the Smart Life app

In addition to fully opening and closing, the smart relay also allows you to control the position of your roller shutters by percentage. This means you can, for example, move the roller shutter to a specific desired intermediate position and individually adjust the light, privacy, and shading.

The desired roller shutter position can be conveniently selected via the Smart Life app. This allows you not only to raise or lower your roller shutters, but also to flexibly adapt them to different times of day and living situations.

Automatic schedules and smart scenes

With the smart Zigbee roller shutter relay, you can automate your roller shutters according to your habits. Create custom schedules so that the roller shutters, for example, open automatically in the morning and close again in the evening.

Control based on sunrise and sunset is also possible. In addition, the roller shutter module can be combined with other Smart-Life devices and sensors in joint scenes.

For example, lighting, heating, and roller shutters can be controlled together in a morning, away, or evening scene.

Voice control with Alexa and Google Assistant

In combination with a compatible Zigbee gateway, the smart roller shutter control can also be integrated into Amazon Alexa and Google Assistant. This allows you to conveniently open or close your roller shutters using a voice command without having to operate the switch or smartphone.

Zigbee 3.0 for a stable smart home

The relay communicates via Zigbee 3.0, making it ideal for a networked smart home with multiple devices. Zigbee operates via a mesh network, whereby compatible mains-powered Zigbee devices support communication within the network and can improve coverage.

At the same time, your Wi-Fi is relieved, as the Zigbee devices do not need to be connected individually to the Wi-Fi router. A compatible Zigbee gateway is required for control via the Smart Life app.

Invisible installation behind the existing roller shutter switch

Thanks to its compact design, the in-wall roller shutter relay is installed directly behind the existing switch. The existing switch design is preserved.

This makes the module particularly suitable for smart home retrofitting when existing roller shutter switches are to be made smart without making visible changes to switches, frames, or the room design.

Your roller shutters can then continue to be controlled via the existing wall switch and additionally smartly via app, voice, schedule, or automated scenes.

Note: A compatible Zigbee gateway is required for Smart-Life app connectivity and voice control.

Our WEEE registration number is: WEEE Reg. No. DE59943004
Information provided without guarantee

Technical Specifications & Scope of Delivery

Package contents

  • 1x Relay

Technical details

  • Communication: Zigbee 3.0
  • Operating temp.: -10 ℃ + 40 ℃
  • Voltage: AC100-240V 50/60hz
  • Max. load: 150W 5A
  • Connection range: <30m
  • Size: 39mm × 39mm × 19.4mm

Compatible Switch Programs & Frame Series

  • Gira: Standard 55
  • Gira: E2
  • Jung: Serie A
  • Busch Jäger: Balance-SI
  • Busch Jäger: Reflex-SI
  • Berker: S.1
  • Merten: Serie M

FAQ

Do I need a gateway for the Zigbee roller shutter relay?

Yes. The relay communicates via Zigbee and therefore requires a compatible Zigbee gateway. The connection to the Smart Life app and compatible voice assistants is established via the gateway.

Can I continue to use my existing roller shutter switch?

Yes. The relay is installed behind the existing roller shutter switch or wall switch in the flush-mount box. The existing switch can then continue to be used for manual operation.

Can I also control the roller shutter by percentage?

Yes. After proper setup and calibration, you can move the roller shutter to desired intermediate positions via the Smart Life app, for example to 30%, 50% or 80%.

Can I control multiple roller shutters with one relay?

The relay is designed for controlling one roller shutter or blind motor. For multiple separately controllable roller shutters, a separate relay is required for each.

Can I open and close the roller shutters automatically at certain times?

Yes. Individual schedules can be created via the Smart Life app. Additionally, automations based on sunrise and sunset are possible.

Is control via Amazon Alexa or Google Assistant possible?

Yes. In combination with a compatible Zigbee gateway, the roller shutters can also be controlled via Amazon Alexa and Google Assistant.

Can I control multiple roller shutters at the same time?

Yes. If multiple SIRO Zigbee roller shutter relays are set up in the Smart Life app, they can be controlled together via scenes and automations.

Does the relay also work without internet?

Operation via the connected wall switch generally remains possible independently of the app. For cloud functions, remote access and voice control, a corresponding connection of the gateway is required.

Where is the roller shutter relay installed?

The compact relay is installed in the flush-mount box behind the existing roller shutter switch. This keeps the existing switch design visible and means it does not have to be replaced.

Does the relay fit my existing switch range?

Since the relay is mounted behind the existing switch, the existing switch range can generally continue to be used. The important thing is that there is enough space in the flush-mount box for the relay and the existing wiring.

Can I also use the relay for blinds?

Yes. The relay is suitable for controlling compatible roller shutter and blind motors in the up and down direction.

Can I install the relay myself?

Since the relay is mounted in the electrical installation, the connection should be carried out by a correspondingly qualified electrician.

Do you also have smart relays for light switches?

Yes. In addition to our Zigbee roller shutter relay, we also offer smart flush-mount relays for lighting control. This also allows existing light switches to be retrofitted with smart technology and controlled via the Smart Life app.

Do you also offer a smart relay for dimming lighting?

Yes. For dimmable lighting, we also offer suitable smart dimmer relays. This allows compatible light sources to not only be switched on and off, but also to have their brightness adjusted.

Is the roller shutter relay also available as a set for multiple roller shutters?

Yes. For retrofitting multiple roller shutters, we also offer the Smart Zigbee roller shutter relay as a 6-pack value package including a Zigbee gateway.

Instructions

Radio standard explained

Which wireless standard is right for me?

The choice of the right wireless standard depends on how many devices you want to use and how flexible your smart home should be.

WLAN (WiFi)

✓ Devices connect directly to your router
✓ No additional device (gateway) required
✓ Fast and easy setup
✓ Ideal for individual devices or smaller setups

Zigbee

✓ Mesh network – every device amplifies the connection
✓ Particularly energy-efficient
✓ Optimal for many devices throughout the house
✓ Reduces the load on your WiFi

Bluetooth

✓ No router necessary
✓ Fast and easy setup
✓ Ideal for individual rooms

Note: The range is limited. Remote control is only possible with an additional gateway.
